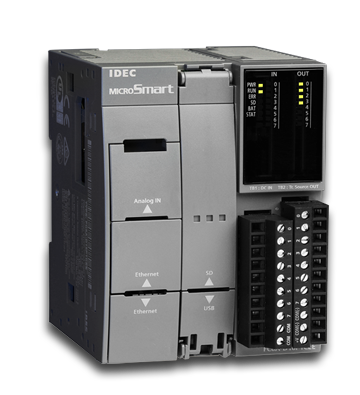

FC6A MicroSmart Plus |

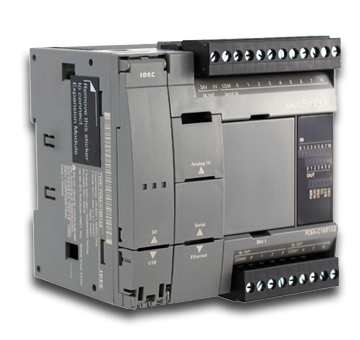

FC6A MicroSmart All-in-One |
| 16I/O CPU |
32 I/O CPU |
16 I/O CPU |
24 I/O CPU |
40 I/O CPU |
40 I/O CAN J1939 CPU |
 |
 |
 |
 |
 |
 |
| Power Voltage: |
| 24VDC |
24VDC |
24VDC, 100 - 240 VAC |
24VDC, 100 - 240 VAC |
12 VDC, 24 VDC, 100 - 240 VAC |
12 VDC, 24 VDC, 100 - 240 VAC |
| Program Capacity: |
| 800K Bytes (100,000 steps) |
800K Bytes (100,000 steps) |
384K Bytes (48,000 steps) |
384K Bytes (48,000 steps) |
384K Bytes (48,000 steps) |
640K Bytes (80,000 steps) |
| Maximum Expansion Modules: |
| 63 |
63 |
12 |
15 |
24 VDC and 100-240 VAC
Type: 15 Modules
12 VDC Type: None |
24 VDC and 100-240 VAC
Type: 15 Modules
12 VDC Type: None |
| Maximum Digital I/O:
|
| 2,044 |
2,060 |
404 |
508 |
508: 24 VDC and 100-240 VAC Type
48: 12 VDC Type |
508: 24 VDC and 100-240 VAC Type
48: 12 VDC Type |
| Maximum Analog I/O: |
| 511 |
511 |
101 |
125 |
24 VDC and 100-240 VAC
Type: 127
12 VDC Type: 7 |
24 VDC and 100-240 VAC
Type: 127
12 VDC Type: 7 |
| Communication Protocol: |
BACnet
Modbus TCP
Modbus RTU
User Communication (Serial, TCP/UDP)
FTP Client/Server
Bluetooth
(optional cartridge) |
BACnet
Modbus TCP
Modbus RTU
User Communication (Serial, TCP/UDP)
FTP Client/Server
Bluetooth
(optional cartridge) |
Modbus TCP
Modbus RTU
User Communication
(Serial, TCP)
Bluetooth (Optional Cartridge) |
Modbus TCP
Modbus RTU
User Communication
(Serial, TCP)
Bluetooth
(optional cartridge) |
Modbus TCP
Modbus RTU
User Communication
(Serial, TCP)
Bluetooth
(optional cartridge) |
CAN J1939
Modbus TCP
Modbus RTU
User Communication (Serial, TCP)
Bluetooth (Optional Cartridge) |
| Data Memory: |
Data Register: 260,000
Internal Bit: 15,400
Timer: 2,000
Counter: 512 |
Data Register: 260,000
Internal Bit: 15,400
Timer: 2,000
Counter: 512 |
Data Register: 56,000
Internal Bit: 12,400
Timer: 1,024
Counter: 512 |
Data Register: 56,000
Internal Bit: 12,400
Timer: 1,024
Counter: 512 |
Data Register: 56,000
Internal Bit: 12,400
Timer: 1,024
Counter: 512 |
Data Register: 56,000
Internal Bit: 12,400
Timer: 1,024
Counter: 512 |
| IIoT Ready: |
iOS and Android Apps
Web Server Function
Email/Text Notification
Web Page Creation Tool |
iOS and Android Apps
Web Server Function (via FC6A-PH1 module)
Email/Text Notification (via FC6A-PH1 module)
Web Page Creation Tool |
|
|
|
