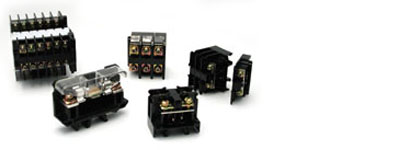

The BN series of terminal blocks are a traditional screw terminal block. With full size screws (nut and bolt termination on larger models) and current ratings up to 150A, there is a BN series terminal block for almost any application. A UL94-V0 flammability rating ensures safety. Dust covers and fuse holders with optional blown fuse indication round out the offering. All models mount onto standard 35mm DIN rail. The BNH series of terminal blocks feature a unique "touch-down" terminal that makes wiring ring-lugs easier than ever before. These terminals use full size screws in various sizes, held captive by unique cammed carrier armature. Modular construction allows for stacking of multiple size blocks, with only one endplate required per run. Optional jumper strips and dust covers simplify wiring and protect terminals. |
 |

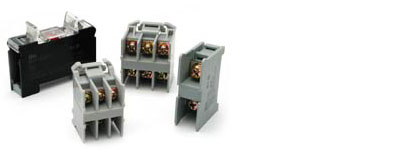

The BA series of terminal blocks features a one-piece construction that makes installation very simple. Available in current capacities from 10A to 40A, all models are made from UL94-V0 material for excellent flame and heat resistance. All models mount onto standard 35mm DIN rail. Fuse holders for 1/4 X 1-1/4 size fuses include optional blown fuse indication. |
 |

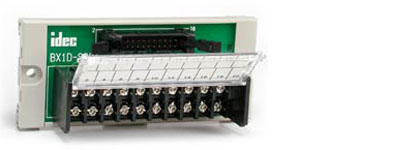

The BX series of terminal blocks provides a wiring junction for MIL-style ribbon cables. Available in several industry standard and PLC MIL connector models, with screw terminals or our unique touch-down terminals, the BX series also features a highly visible hinged marking strip to clearly label connections and terminations. Like all other IDEC terminal blocks, they are UL and CSA approved, with excellent flame and shock resistance, and are DIN-rail mountable. |
Klicken Sie hier, um den englischen Prospekt als PDF herunterzuladen: Terminal Blocks (Klemmen)(PDF)
